Controlling standing waves and unwanted noise is essential both for enjoying superb sound and for listening comfort.

The SHIZUKA Stillness Panel creates a silent space, which is enabled by its unique acoustic structure, and an environment for accurate monitoring that is of primary importance for mixing.

Developed by a team of prominent professional musicians, recording engineers, and acoustic space designers, the SHIZUKA Stillness Panel is an optimal panel for creating an acoustic space at a sound studio, live music club, movie theater, or your own home.

Use

professional use

Professional Use

Create a silent space for accurate sound reproduction.

Use the panels to enclose the entire space of a professional environment, and they will deliver superior performance matching that of a simplified anechoic chamber. In a room such as a studio, they absorb unwanted echoes across the entire frequency range. (Sound absorption performance: 100 Hz to 10 kHz) The SHIZUKA Stillness Panel is capable of absorbing or insulating a large volume of sound. You can also install the panel in your preferred location over a desired area to absorb sound only in that part of the room.

Home Audio Room

Home Audio Room

Install the panels easily and appropriately for your equipment and environment.

The SHIZUKA Stillness Panel lets you create a home audio environment with less reverberation, without renovating or rebuilding your house. The space-saving panel can be installed behind your speaker for more accurate sound reproduction.

Desktop Audio

Desktop Audio

The space-saving panel absorbs noise and lets you enjoy reflected sound, too.

The SHIZUKA Stillness Panel also improves the quality of sound from your desktop audio system, which tends to reverberate. Despite the small size, the panel surely absorbs and insulates unwanted sound, allowing you to enjoy clearer sound at your desk.

performance

Features and Performance of the SHIZUKA Stillness Panel

Features and Performance of the SHIZUKA Stillness Panel

The basic structure of the panel features the use of three types of materials, which differ from each other in specific gravity. These materials are used inside the panel. The 0.01 mm mesh, which is less reflective than many other materials, converts the incoming sound into thermal energy in a highly efficient manner. This material alone can absorb sound in a limited frequency range. Behind it, however, are sound-absorbing layers of different materials, which enable the panel to absorb sound in a wide frequency range. The sound absorbing material used in the inside has air layers that are finer than those of conventional materials. These layers firmly contain the incoming sound.

You can create a simplified anechoic chamber by connecting multiple panels. In addition, the back surface of the panel uses a reflective material. This means you can create an ideal acoustic environment on your own by using the panels for absorbing or reflecting sound.

data

Data on Sound Absorption Properties

Data on sound absorption rates measured using the reverberation room method
Data on sound absorption rates measured using the reverberation room method

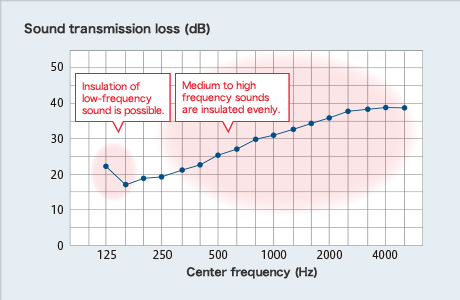

Data on sound transmission loss
Data on sound transmission loss

products

  • SHIZUKA Stillness Panel SDM Movie VOL.1

    This is a video by jazz musician and drummer Shun Ishiwaka.SHIZUKA Stillness Panel Please check the change in sound caused by installing the SDM.

  • SHIZUKA Stillness Panel SDM Movie VOL.2

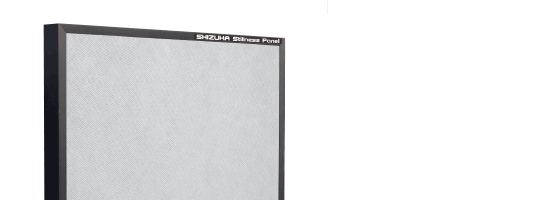

SHIZUKA STILLNESS PANEL

B-500、S-500 with Legs

  • B-500 脚あり S-500 脚あり
    • Model

      B-500,S-500 with Legs
    • Frame

      Yes(PVC)
    • Leg

      Yes
    • Height and width

      505㎜  x  505㎜
    • Thickness

      36mm
    • Weight

      2kg
    • Regular price (Japanese yen)

      Black:29,000 + tax Silver:26,000 + tax

B-1000,S-1000 with Legs

  • B-1000 S-1000
    • Model

      B-1000,S-1000 with Legs
    • Frame

      Yes(PVC)
    • Leg

      Yes
    • Height and width

      1,005㎜ × 1,005㎜
    • Thickness

      36mm
    • Weight

      8kg
    • Regular price (Japanese yen)

      Black:92,000円+ tax Black:88,000円 + tax

B-500、S-500

  • B-500 S-500
    • Model

      B-500 , S-500
    • Frame

      Yes(PVC)
    • Leg

      Yes
    • Height and width

      505㎜ × 505㎜
    • Thickness

      36mm
    • Weight

      2kg
    • Regular price (Japanese yen)

      Black:22,000 + tax Silver:20,000 + tax

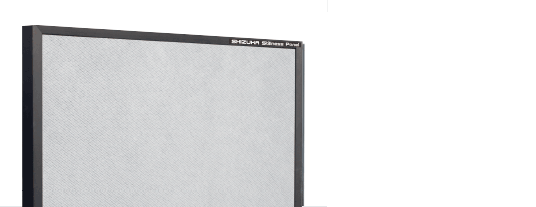

B-1000、S-1000

  • B-1000 S-1000
    • Model

      B-1000 , S-1000
    • Frame

      Yes(PVC)
    • Leg

      No
    • Height and width

      1,005㎜ × 1,005㎜
    • Thickness

      36mm
    • Weight

      8kg
    • Regular price (Japanese yen)

      Black:80,000 + tax Silver:76,000 + tax

SHIZUKA STILLNESS PANEL SDM

SDM カラーバリエーション

SDM-1800-(K,R,G,B)

  • SDM-1800 the photo is SDM-1800-BB
    • Model

      SDM-1800(K,R,G,B)
    • Surface color

       Black,Red,Blue,Gray /polyester
    • Frame

      Yes (PVC:Black)
    • Height and width

      1800×505mm ,double
    • Thickness

      43㎜/1.693inch, Folding size 85㎜/3.346inch
    • Weight

      10.6kg/23.37lb
    • Regular price(Japanese yen)

      85,000 +Tax
    • Color

      K:Black, G:Gray, R:Red, B:Blue *Can be combined ex) SDM-1800-RB(Left panel:Red,Right panel,Blue) SSDM-1800-GK(Left panel:Gray,Right panel,Black)

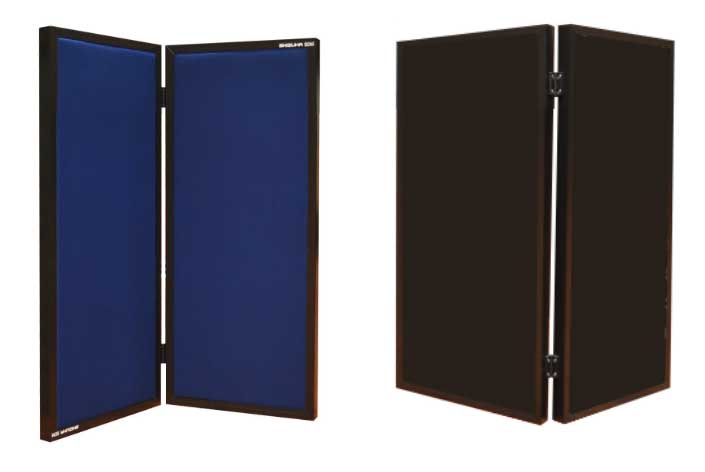

SDM-900-(K,R,G,B)

  • SDM-900 * the photo is 「SDM-900-BB」
    • Model

      SDM-900-(K,R,G,B)
    • Surface color

      Black,Red,Blue,Gray /polyester
    • Frame

      Yes (Black/PVC)
    • Height and width

      900×505mm ,double
    • Thickness

      43㎜/1.693inch, Folding size 85㎜/3.346inch
    • Weight

      5.3kg/11.68lb
    • Regular price(Japanese yen)

      50,000 +tax
    • Color

      K:Black, G:Gray, R:Red, B:Blue *Can be combined ex) SDM-900-RB(Left panel:Red,Right panel,Blue) SDM-900-GK(Left panel:Gray,Right panel,Black)

SDM-Bag

  • SDM-袋
    • Model

       SDM-Bag
    • Color

      Black
    • Regular price(Japanese yen)

      7,000+tax

SSP-E15 Esprit

  • SSP-E15 Esprit
    • Model

      SSP-E15 Esprit
    • Size

      300×600mm×15mm
    • Color

      Brown
    • Weight

      150g/0.33lb

SSP-E38 Esprit Life

  • SSP-E38 Esprit Life
    • Model

      SSP-E38 Esprit Life
    • Size

      300×600mm×38mm
    • Color

      Brown
    • Weight

      320g/0.70lb
Cautions
  • The above prices do not include the costs of transportation and installation.
  • The products are to be used as acoustic panels only. Do not use them for any other purpose.
  • The surface is hard. However, concentrated loads on the surface must be avoided.
  • We accept returns and exchanges for products damaged during transportation. (Please note that an immediate refund or replacement may not be available.) We do not accept returns for reasons attributable to the customer.

movies

  • SHIZUKA Stillness Panel SDM Movie VOL.1

    This is a video by jazz musician and drummer Shun Ishiwaka.SHIZUKA Stillness Panel Please check the change in sound caused by installing the SDM.

  • SHIZUKA Stillness Panel SDM Movie VOL.2

    This is a video by Toshi Tsuruoka, who has been working as an engineer based in New York for 7 years. SHIZUKA Stillness Panel SDM is explained in an easy-to-understand manner.

  • Sound absorption demonstration

  • Sound insulation demonstration

  • Guitar amplifier and sound insulation demonstration

  • Set up a sound-absorbing panel in a small speaker behind
